Rechargeable 10s6p 36V 19.2Ah Solar Lithium Ion Battery Pack For 500W 750W Electric Scooter

Marchio:	RESKY
Numero di modello:	RSK-3619.2
MOQ:	10 PCS
prezzo:	Negoziabile
Dettagli dell' imballaggio:	Imballaggi standard per l'esportazione/casella ONU
Condizioni di pagamento:	Western Union,T/T

Informazioni dettagliate

Descrizione del prodotto

Informazioni dettagliate

Luogo di origine:

Certificazione:

CE,RoHS,MSDS,Un38.3

Elettroliti:

Li (nitrogeno) O2

Struttura:

10s6p

Tipo di cella:

Celle batteria Panasonic NCR18650BD

Motore:

750 W

Tensione di arresto di carica:

Corrente di carica:

Discarica tensione di taglio:

27.5V

Corrente di dispersione continua:

Corrente di scarica massima:

691wh

Capacità di alimentazione:

500 PCS/GIOVUNA

Evidenziare:

36V 19.2Ah Lithium Ion Battery Pack

750W Rechargeable Lithium Ion Battery Pack

10s6p Rechargeable Lithium Ion Battery Pack

Descrizione del prodotto

Product Description

Rechargeable 10s6p 36V 19.2Ah Solar Lithium Ion Battery Pack For 500W 750W Electric Scooter

Specification:

Product name	36V 19.2Ah
Model	RSK-3619.2
Rated Capacity	19.2Ah
Nominal Voltage	36V
Over discharge protection voltage	30V±0.05V
Over charge protection voltage	42V±0.05V
AC Impedance New Cell Max.(mΩ)	≤100 mΩ
Maximum Continuous Charge Current	≤5A adjustment
Maximum Continuous Discharge Current	≤20A adjustment
Maximum Pulse discharge current	≤30A adjustment
Operation Temperature Range	Charge: 0~45°C,Discharge: -20~60°C
Storage Temperature Range	Less than 1 year: -20~25°C
Storage Temperature Range	Less than 3 months: -20~40°C
Storage Temperature Range	Less than 30 Days: -25°C~45°C
Storage Temperature Range	Less than 90 Days: -25°C~30°C
Weight	Approx 3.5kg
Cycle Characteristic	500 times

Various cell brand available:

Rechargeable 10s6p 36V 19.2Ah Solar Lithium Ion Battery Pack For 500W 750W Electric Scooter 0

Various cell type available:

1. Domestic ICR18650 battery cell(2600mAh, 2900mAh, 3400mAh, 3500mAh);

Domestic ICR21700 battery cell(4000mAh, 4500mAh, 5000mAh);

2. Panasonic: NCR18650F, NCR18650PF, NCR18650BE, NCR18650BD, NCR18650B, NCR18650BF, NCR18650GA;

3. Samsung cell available:

Samsung	INR1865035ET	3500	10A	3C
Samsung	INR1865025RM/RT	2500	20A	8C
Samsung	INR1865030Q/QM	3000	15A	5C
Samsung	INR2170050E	4800	10A	2C
Samsung	INR2170040T	4000	30A	7C
Samsung	INR2170050GB	5000	10A	2C
Samsung	INR2170050G	5000	10A	2C
Samsung	INR2170050S	5000	35A	7C

Various assembling way:

Various series or parrallels assembling way;

Voltage range for li-ion battery pack: 12V/24V/48V/60V/72V ect;

Voltage range for Lifepo4 battery pack: 12.8V/25.6V/51.2V/64V ect;

Rechargeable 10s6p 36V 19.2Ah Solar Lithium Ion Battery Pack For 500W 750W Electric Scooter 1

Rechargeable 10s6p 36V 19.2Ah Solar Lithium Ion Battery Pack For 500W 750W Electric Scooter 2

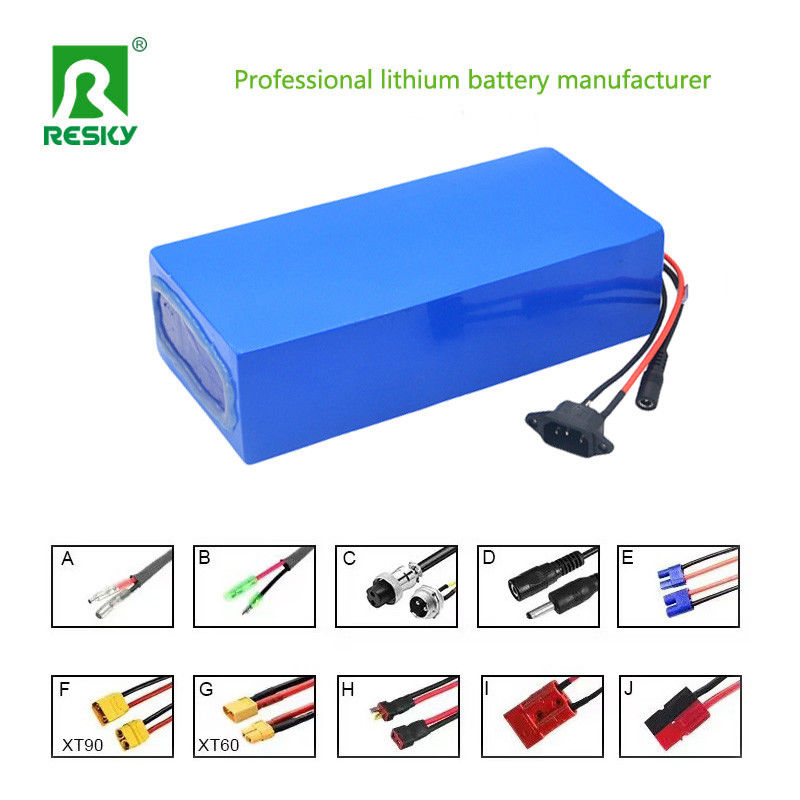

Input & output plug:

Rechargeable 10s6p 36V 19.2Ah Solar Lithium Ion Battery Pack For 500W 750W Electric Scooter 3

Various application:

1. Electric Bicycle replacement;

2. Electric scooter replacement;

3. Electric motorcycle;

4. Electric forklift;

5. Electric golf cart;

6. Electric tricycle;

7. Electric wheelchair;

8. Solar street LED light;

9. Storage UPS;

Rechargeable 10s6p 36V 19.2Ah Solar Lithium Ion Battery Pack For 500W 750W Electric Scooter 4

Rechargeable 10s6p 36V 19.2Ah Solar Lithium Ion Battery Pack For 500W 750W Electric Scooter 5

Why choose us?

1. We accept small quantity order or big quantity order;

2. We could accept any customized lithium battery pack orders;

3. We could accept orders with different requirements;

4. We guarantee 100% QC pass before delivery;

5. Fast production time, we have enough stock cells;

6. Fast solution confirmation, and quotation confirmation;

Factory pictures:

Battery cell warehouse:

Rechargeable 10s6p 36V 19.2Ah Solar Lithium Ion Battery Pack For 500W 750W Electric Scooter 6

Battery shell warehouse:

Automatic cylindrical battery cell sorting machine:

Assembled battery pack:

Completed battery in aging:

Rechargeable 10s6p 36V 19.2Ah Solar Lithium Ion Battery Pack For 500W 750W Electric Scooter 11

Workshop picture:

Rechargeable 10s6p 36V 19.2Ah Solar Lithium Ion Battery Pack For 500W 750W Electric Scooter 12

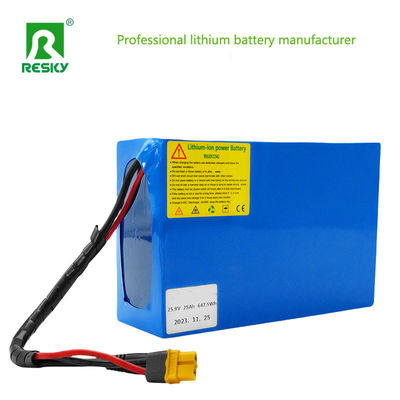

Battery Pictures:

Rechargeable 10s6p 36V 19.2Ah Solar Lithium Ion Battery Pack For 500W 750W Electric Scooter 13

Rechargeable 10s6p 36V 19.2Ah Solar Lithium Ion Battery Pack For 500W 750W Electric Scooter 15

Rechargeable 10s6p 36V 19.2Ah Solar Lithium Ion Battery Pack For 500W 750W Electric Scooter 17
