Accumulatore di batterie polimeriche al litio

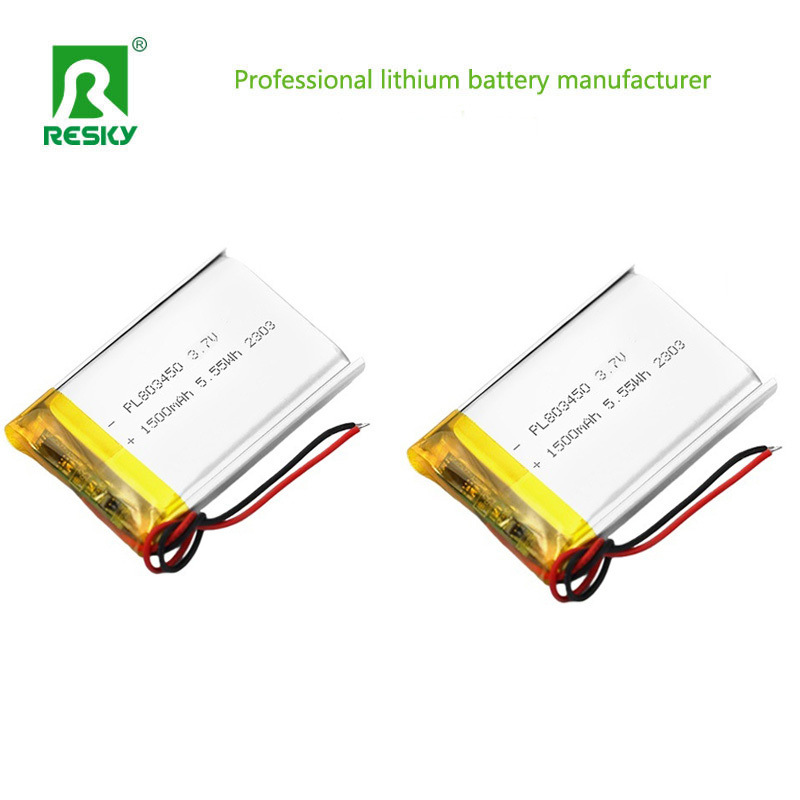

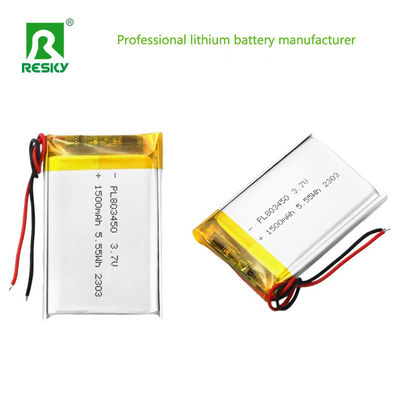

Square Lipo Battery Cell 803450 3.7v 1500mAh 5.55wh Solar Rechargeable Lithium Polymer Battery

Tutte le categorie

Cella di batteria al litio polimerico

batteria al litio del rc

Accumulatore Li-Ion

Accumulatore di batterie polimeriche al litio

Batteria al litio riscaldata

Batteria per biciclette elettriche

Caricatore di bilanciamento RC

caricatore della batteria ricaricabile

Accessori RC

Contattaci

Mrs. Alice

alice@szresky.com

0086 13530058480

0086 13530058480

Contattaci ora

Square Lipo Battery Cell 803450 3.7v 1500mAh 5.55wh Solar Rechargeable Lithium Polymer Battery

Marchio:	RESKY
Numero di modello:	LP803450
MOQ:	10pcs
prezzo:	Negoziabile
Dettagli dell' imballaggio:	Scatola di carta
Condizioni di pagamento:	Western Union, t/t

Informazioni dettagliate

Descrizione del prodotto

Valutazioni e recensioni

Informazioni dettagliate

Luogo di origine:

Cina

Certificazione:

CE, RoHS, MSDS, Un38.3, IEC62133,ect

Documento:

LP103450 2000mAh with norma...28.pdf

Capacità nominale:

1500 mAh

Carica corrente:

0.2c

Max Discharging Current:

Peso:

15g

MOQ:

10pcs

Vita ciclo:

500cicli

Garanzia:

12 mesi

spedizione:

Dhl, fedex, tnt, per aria, via mare

Elettrolita:

Li (nicomn) o2

Specifica:

8*34*50 mm

Capacità di alimentazione:

50000pcs/giorno

Evidenziare:

Square Lipo Battery 3.7v 1500mAh

Solar Rechargeable Lithium Polymer Battery

803450 Lipo Battery with warranty

Descrizione del prodotto

Square Lipo Battery Cell 803450 3.7V 1500mAh 5.55Wh Solar Rechargeable Lithium Polymer Battery

Product Attributes

Nominal Capacity	1500mAh
Charging Current	0.2C
Max Discharging Current	1C
Weight	15g
MOQ	10PCS
Cycle Life	500 cycles
Warranty	12 months
Shipping	DHL, FedEx, TNT, by Air, by Sea
Electrolyte	Li(Nicomn)O2
Specification	8×34×50mm

Technical Specifications

No.	Parameter	Value
1	Batteries	3.7V 1500mAh LiPo battery
2	Charge voltage	4.2V
3	Nominal voltage	3.7V
4	Nominal capacity	1500mAh 0.2C Discharge
5	Charge current	Standard Charging: 0.5C Rapid charge: 1.0C
6	Standard Charging method	0.5C CC charge to 4.2V, then CV charge till current ≤0.05C
7	Charging time	Standard: 2.75 hours Rapid: 2 hours
8	Max. charge current	1.0C
9	Max. discharge current	1.0C
10	Discharge cut-off voltage	2.5V±0.25V (0.2C)
11	Operating temperature	Charging: 0°C~45°C Discharging: 0°C~45°C
12	Storage temperature	-10°C~+45°C
13	Dimension	Length: 50±0.5mm Width: 34±0.5mm Thickness: 8±0.2mm
14	Drop Test	1m drop onto concrete twice - no fire, no leakage
15	Cycle time	≥500 times

Key Features

Slim and Lightweight: Compact 8×34×50mm dimensions and 15g weight enable easy integration into small or flat devices.
High Performance: NCM/NCA ternary cathode provides energy density of 160-180 Wh/kg.
Extended Runtime: 1500mAh capacity supports 6-10 hours continuous use in small devices.
Universal Compatibility: 3.7V standard voltage works with most small electronic device power systems.
Enhanced Safety: Built-in protection against overcharge, over-discharge, and short circuits.
Long Service Life: 500-800 cycles at 0.5C charge/discharge with ≤3% monthly self-discharge.
Flexible Installation: Soft-pack design conforms to irregular device structures with optional pre-installed circuit boards.
