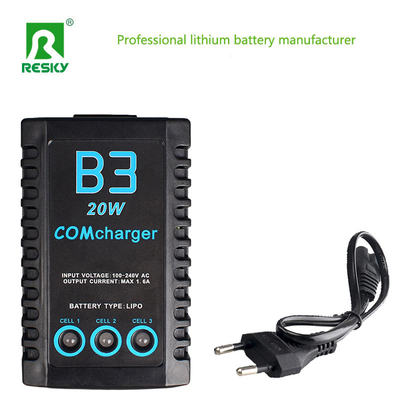

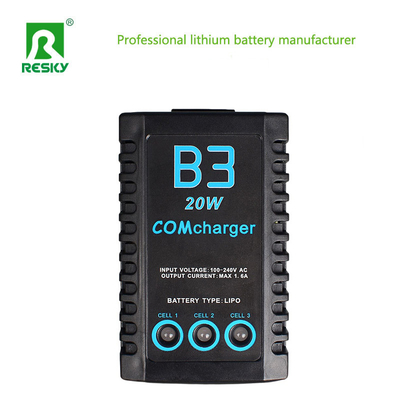

B3 20W Balance Rechargeable Lipo Battery Charger For 2s 3s 7.4V 11.1V RC Car Airplane Batteries

Features:

100% brand new and high quality

IMAX RC B3 20W Compact Battery Balance Charger Intelligent Lipo Battery Charger 2-3S

IMAXRC B3 20W compact charger is the best solution for 2S and 3S Lipo battery, because it is light and exquisite, 20W Max power, 1.6A charge current, AC function, especially there is separated corresponding balance port for each battery pack. It is Very suitable for RC cars and helicopters

Firstly, please connect the B3 with the power supply, and then the three LED lights will become green, which indicates the charger works in good order.

Secondly, please connect the 2S or 3S Lipo battery to the balance port, and then the LED lights will become red and it begins to charge the battery. Please note that if one cell battery is fully charged, the corresponding LED light will become green.

After all the LED lights all become green, the charging process is finished. Pls terminate the charge process.

Charging power: 20W

Balance charging current: 1600mA

Power Input Voltage: AC 110 to 240V,50/60Hz

Power Output: 20 Watts
Battery Type: LiPo 2S- 3S (Series)
Size:Approx. 91 x 58 x 35 mm
Cable length:Approx.1.4 m
Wet weight:154 g
Package weight:194 g


Charger connection:

Firstly, please connect B3 to the power supply, and then the three LED lights will turn green, indicating that the charger is in good condition.

Secondly, please connect the 2S or 3S battery balancing port, and then the LED light will turn red, indicating that it starts charging the battery.

All LED lights turn green, and the charging process ends. Please terminate the charging process.

Warning:

1. Only use chargers and battery types. Do not attempt to use other types of batteries. This charger is incompatible with nickel hydrogen/nickel cadmium batteries.

2. Observe any warning about your battery.

3. Please observe the charging process of the charger. If any malfunction is detected, terminate the process immediately.

4. Keep the charger away from moisture, dust, dirt, heat, direct sunlight, and vibration.

5. All connections are made before starting the charging process. Non reversed polarity connection.

6. The charger and battery charging should be placed on a heat-resistant, non flammable, and non-conductive surface. Do not place them on car seats, carpets, or similar structures. Keep flammable materials away from the work area.

7. To avoid short circuits between the output power cord and input connector, always connect the charger with the adapter cord before charging the battery. When reversing the sequence, disconnect.
